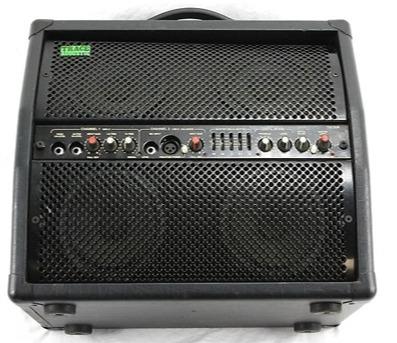

Trace Elliot TA100R Acoustic Guitar Combo

Trace Elliot TA100R Acoustic Guitar Combo

From £25.00

BOOK NOW

The Trace Elliot TA100R is a solid-state acoustic instrument/vocal combo amplifier designed for solo performers, singer-songwriters, and small venue reinforcement. It combines acoustic guitar preamplification, microphone input, onboard digital effects, feedback suppression tools, and line outputs in a portable enclosure.

General Specifications

Parameter	Specification
Model	TA100R
Manufacturer	Trace Elliot
Amplifier Type	Acoustic combo amplifier
Output Power	100W RMS
Channels	2
Speaker Configuration	4 × 5-inch full-range drivers
Electronics	Solid-state
Reverb	Digital
Effects	Built-in DSP effects
Finish	Black
Approx. Era	1990s–2000s production references

Input Section

Channel Inputs

Input Type	Impedance	Sensitivity / Gain
Piezo / Low-Level Instrument	10 MΩ	100 mV to 8V p-p
Active / High-Level Instrument	68 kΩ	100 mV to 20V p-p
Low-Z Balanced Mic Input	470 Ω	+15 dB to +60 dB gain
Effects Return	22 kΩ	0 dBV nominal
Link / Line In	47 kΩ	0 dBV nominal

Output Section

Output Type	Impedance	Level
Effects Send	47 kΩ	0 dBV nominal
Balanced DI Outputs	600 Ω	500 mV p-p
Link / Line Out	47 kΩ	0 dBV nominal

6. Equalization & Tone Control

Function	Specification
Master EQ	±15 dB at 5 center frequencies
Shape Filter	+6 dB @ 160 Hz / -6 dB @ 900 Hz / +10 dB @ 6 kHz
Notch Filter	Q = 10, sweep range 60 Hz to 720 Hz
Phase Control	Included (feedback control)

Effects Processor

Integrated 16-bit digital effects engine with selectable presets:

4 × Room reverbs
4 × Hall reverbs
4 × Plate reverbs
4 × Delay programs
Footswitchable effects bypass/on-off

Additional Features

48V phantom power for condenser microphones
Dual-channel operation for guitar + vocal use
Feedback locating / suppression system
Stereo voicing architecture (some market variants referenced)
Suitable as compact PA for pubs, cafés, small stages

Typical Applications

Electro-acoustic guitar amplification
Vocal + guitar solo performance
Coffeehouse / pub gigs
Small rehearsal PA
Stage monitor with DI feed to FOH

Size

	Length	Width	Height
Unit Size	310.00ft	435.00ft	380.09ft

Suitability

Adults

Children

Indoors on Hard Surface

Outdoors on Grass
